iScape – Propinca product specification

V14 – August 2017


Transmitter

iScape's transmitters are mains or battery powered with line-of-sight range of over 10 miles. They interface to utility meters or sensors and transmit their data to loggers.

Transmitters

• 169.4 – 169.475 MHz, +10 dBm,

• +17 dBm and +27 RF output options available with dipole antenna ,

• On-board non-rechargeable lithium battery at 3.6v, 2.4Ah ,

• Operating temperature range: -25 to 40 °C ,

• Transmission interval: 5 minutes (other options available) ,

• Battery life at 5-minute transmission intervals: up to 5 years at 25 °C ,

• Available in white/black, including white/black antenna ,

• Potted version available for operation in water ,

• ATEX certified version available ,

• AES 128 bit encryption available ,

• Dimension: 66x50x34 mm

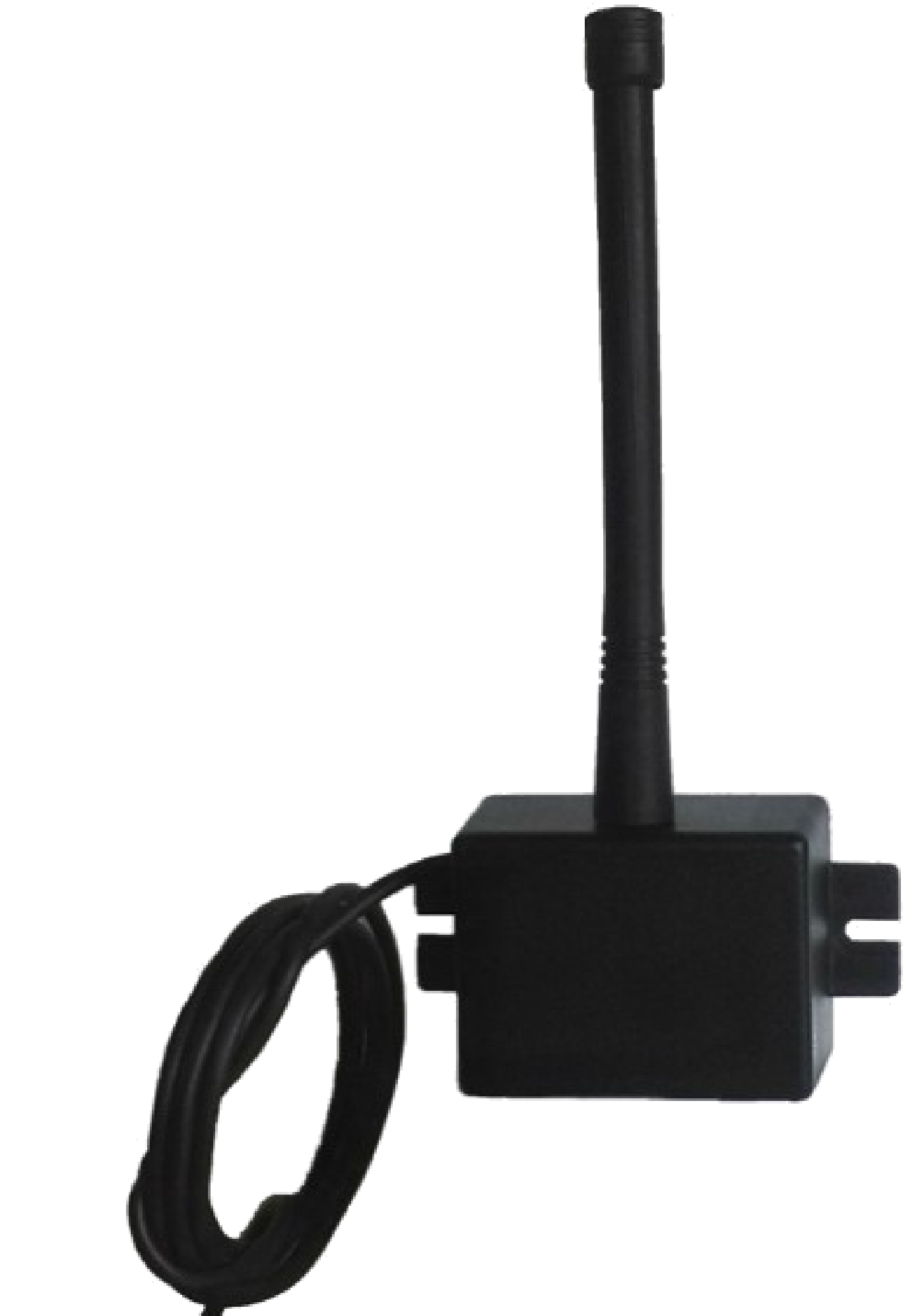

Transmitter – Single Counter input:

• 24 bit counter
• 40ms pulse width, 25Hz pulse rate input

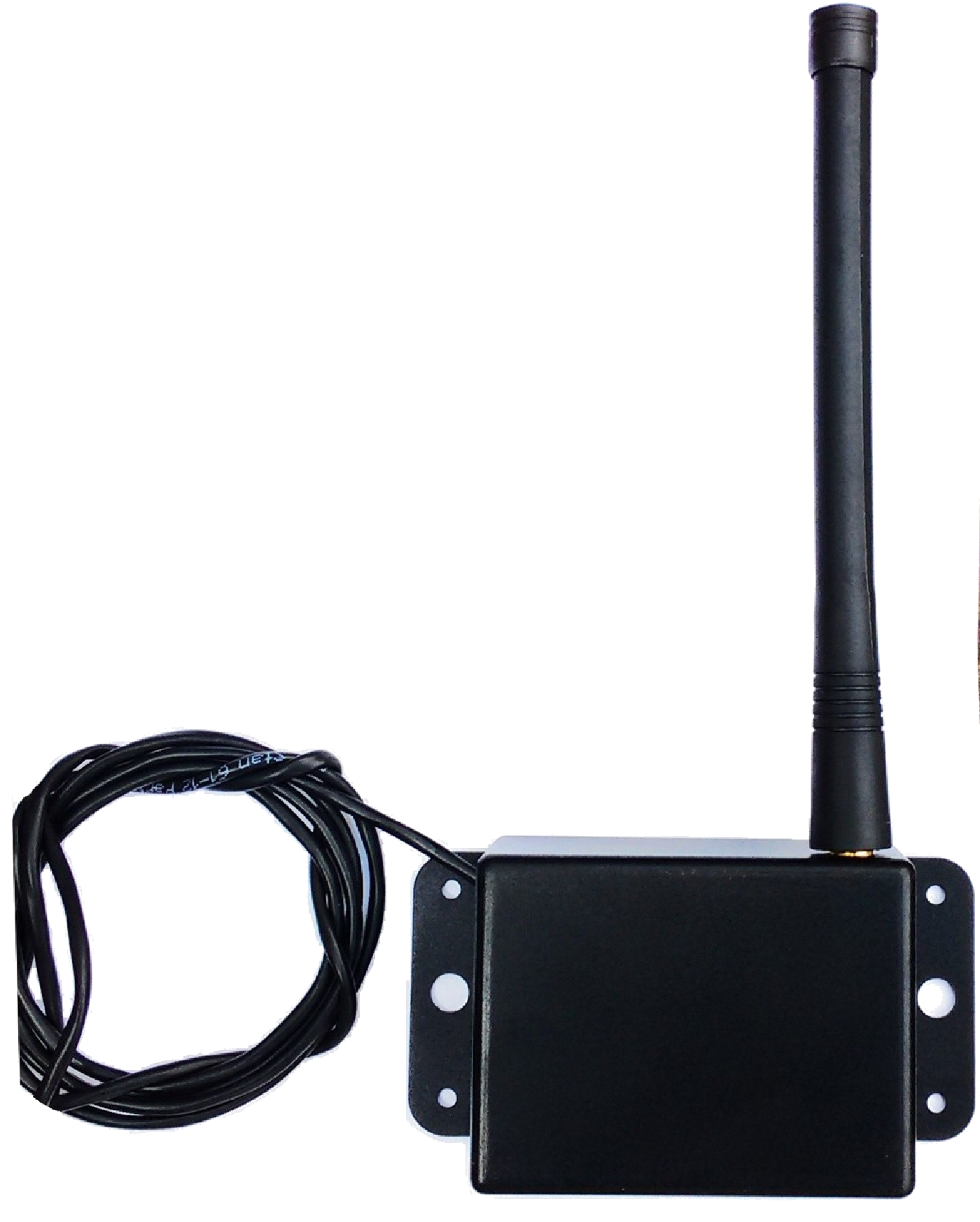

Transmitter – 8 Counter input option:

• As single counter input transmitter, but 1 Hz pulse rate per input

Transmitter - High Power option:

• High power version of the single counter input transmitter,
• +27 dBm, using dipole antenna
• Dimensions: 84x64x46 mm

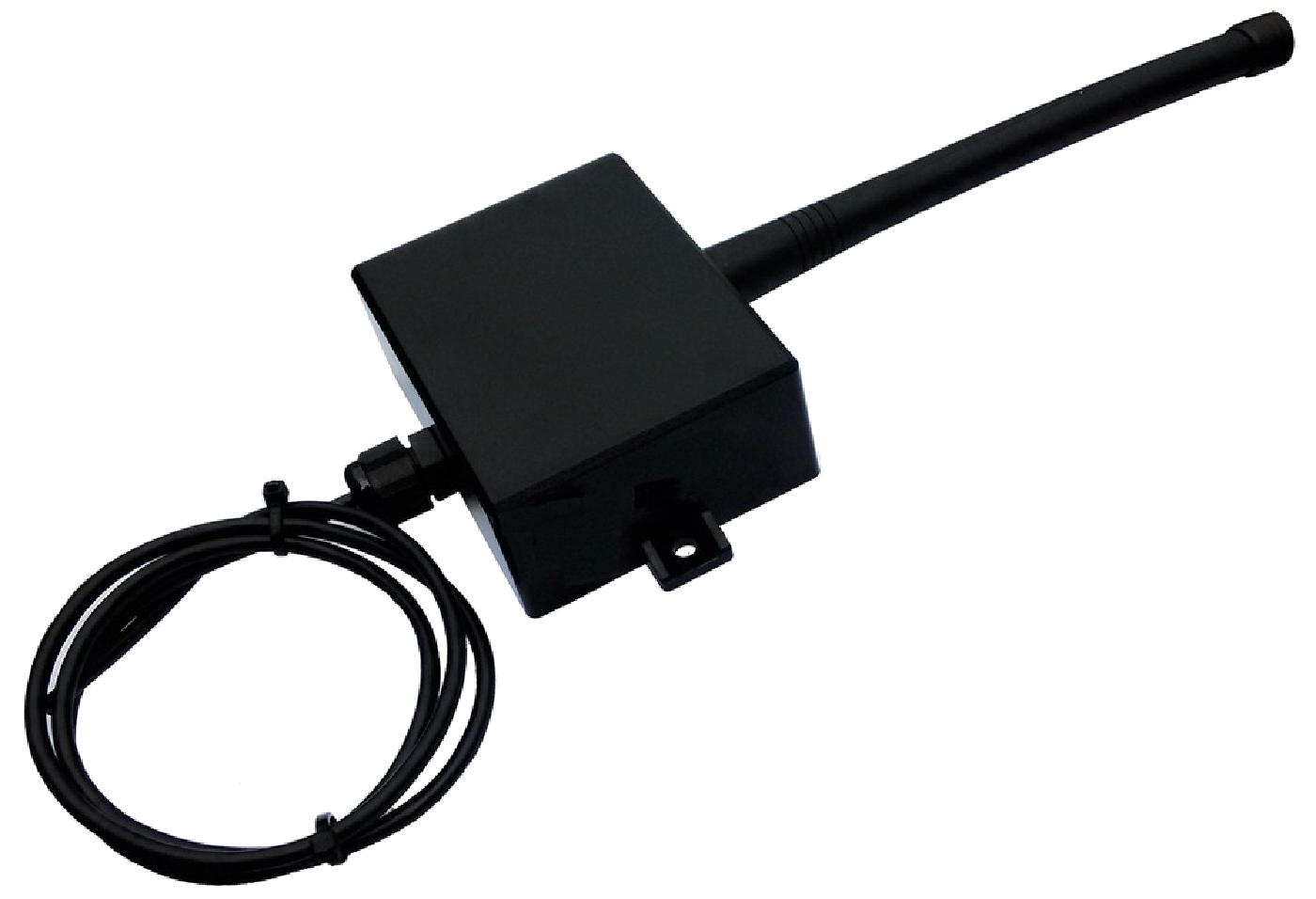

Transmitter – Modbus Master option:

• Modbus Master (Single Bus)
• Support up to 128 Modbus registers
• 9600 baud
• Mains powered
• 88 x 68 x 33 mm (excluding flange)

Transmitter - M-Bus Master option:

• M-Bus Master (Single Bus)
• Supports up to 35 slaves
• 2400 baud
• Mains powered
• 88 x 68 x 33 mm (excluding flange)

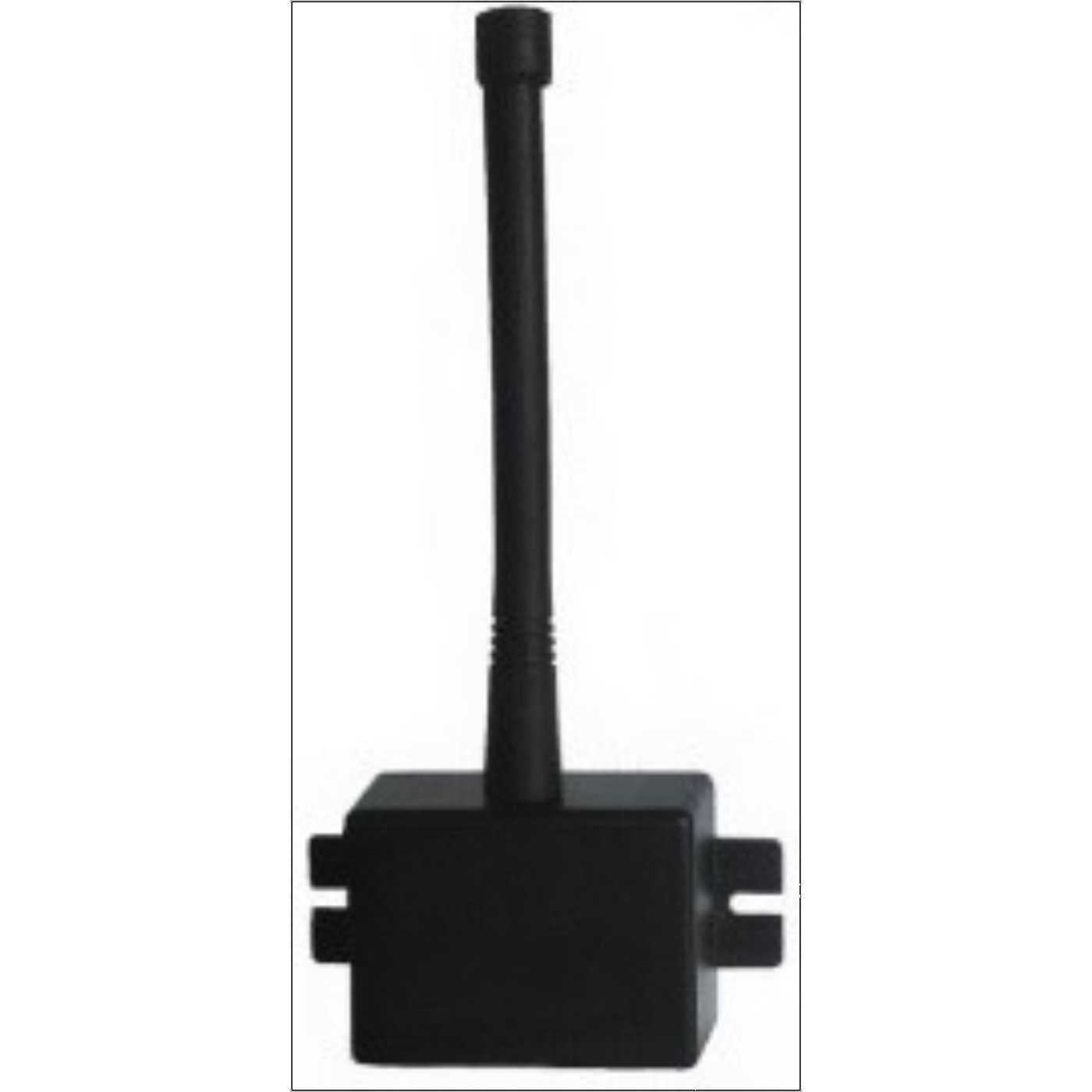

Transmitter - Internal Temperature/Humidity sensor option:

• Temperature measurement range: -25 to 40 °C
• Temperature resolution: 0.1 °C
• Temperature accuracy: +/- 1 °C
• Relative humidity accuracy: +/- 2%

Transmitter - Single/Dual PT1000 temperature sensor(s) options:

• Wide temperature range: -80 to 200 °C, resolution: 0.3 °C, accuracy: +/- 1 °C

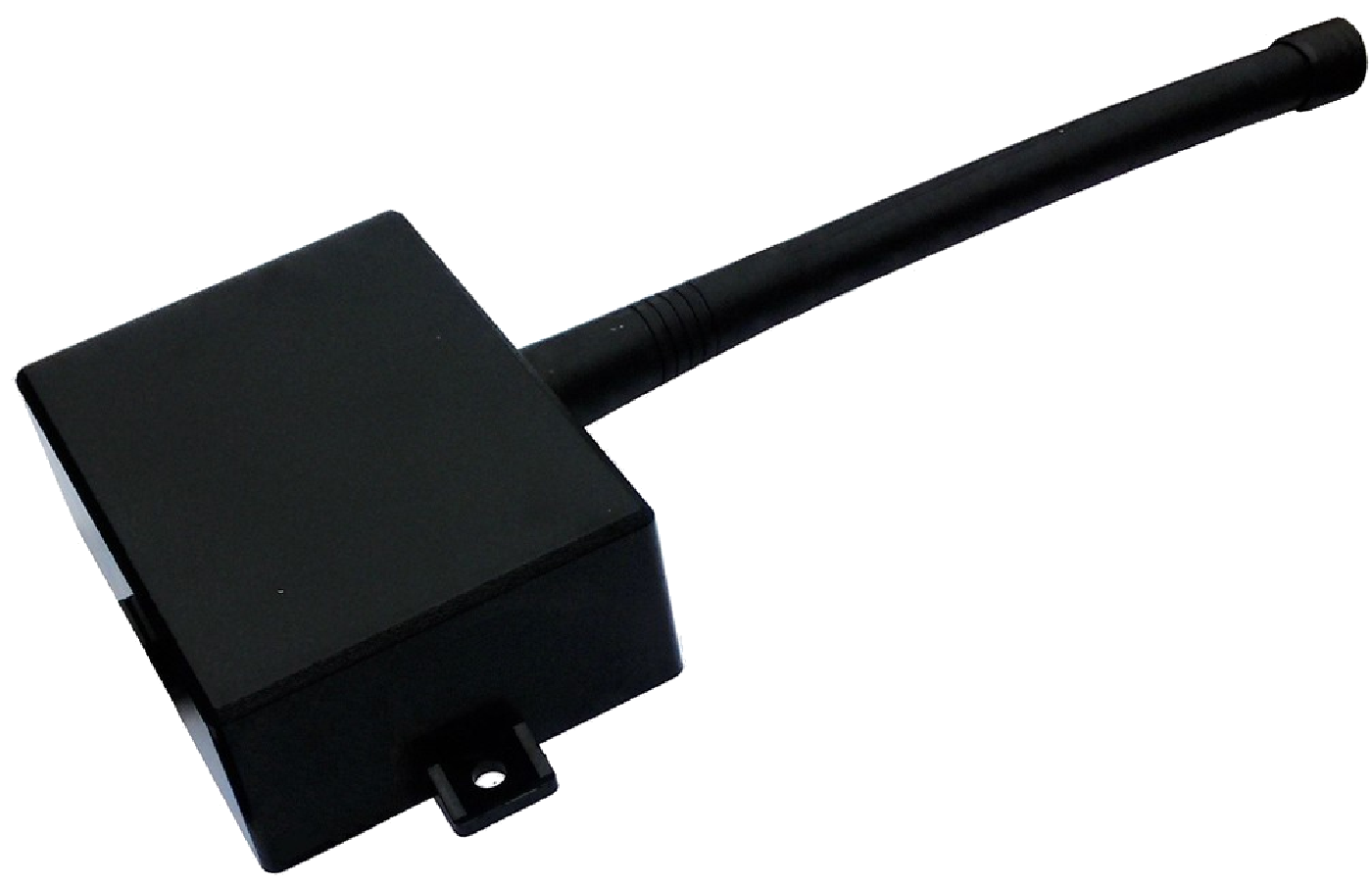

Repeater option:

• Dimensions: 88x68x33 mm (excluding flange)
• Operating temperature range: -10 to 40 °C
• +27 dBm output power option (dipole antenna)
• Mains powered
• Repeats every unique transmission it receives (including transmission from other repeaters)
